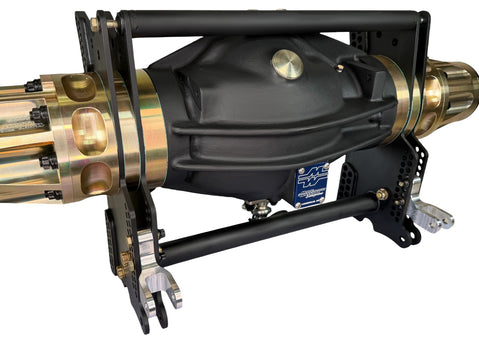

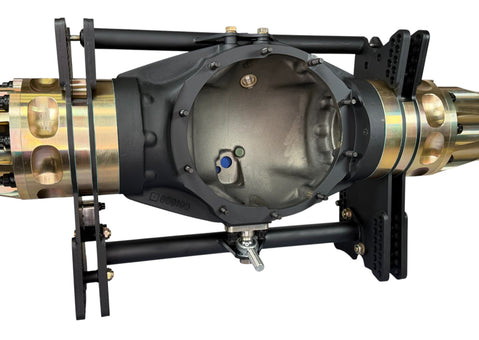

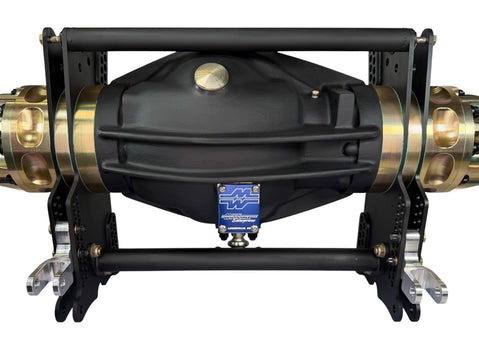

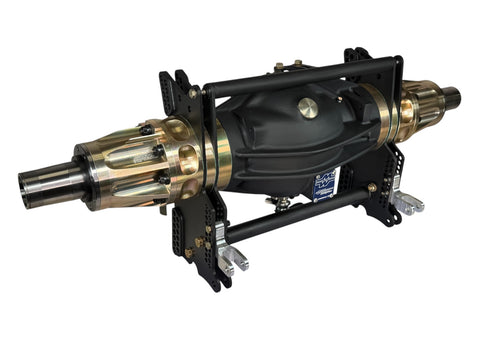

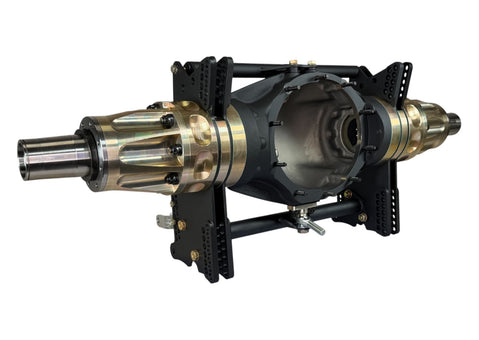

Modular 9" Floater Housing w/ Apex 4 Link Bracketry 16 to 17.25"

Mark Williams Modular rear end systems offer the ultimate versatility, precision, and strength when building or updating your chassis. Featuring a high strength, heat treated A206 cast center section which is precision machined in house paired with 7075 precision machined spacers and end bells, this rear end offers the adaptability overtime paired with laser straight axle alignment and durability.

Our newest variant of the modular features our new Apex bracketry which allows for fine adjustment 4 link changes for today's racing needs paired with other features that will improve your build and usefulness on and off the track.

Features

• High strenth A206 aluminum center housing
• 7075 billet aluminum 4 link spacers, axle spacers, and end bells
• Highly adjustable upper and lower 4 link locations perfect for slick or radial tire suspension setup (doublers for bolt holes available as add on and not standard)
• Adjustable shock mounting location (billet shock mounts not included
• Upper and lower cross tie bars
• Built in Pro Jack mounts
• Optional upper and lower wishbone billet mounting location (5/8" bolt)
• Upper and lower wheelie bar mounts
• Mark Williams 4140 high strength floater spindles
• 16ORB Upper fill cap
• Lower fill drain
• Fits 10" ring gear and up to 4" spool bearing/main cap combo

Shop Floater Axles: Click Here

Note: rear ends come standard in bare aluminum.

Note: Exact dimensions will be confirmed before production
