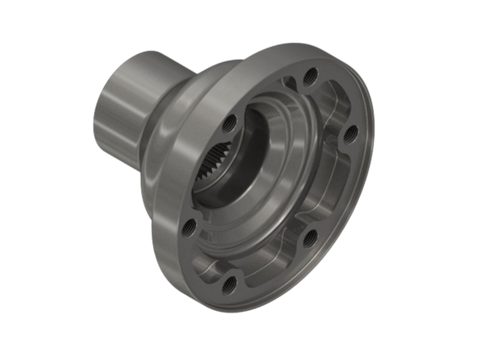

Ford 9" CV Style 35 Spline Big Pinion Yoke

Mark Williams CV Pinion Yoke turns your Ford 9" with a 35 spline big pinion drive into an option that accepts CV shafts to the specs below. This Ford 9" style yoke is designed to work with a 35 spline large pinion pinion. All machining is done in relationship to the spline pitch diameter to ensure each yoke is symmetrical for balance and smooth operation.

Features

• Ford 9" 35 spline compatible

• 4140 heat treated steel

• Black oxide coated
• For Series15 CV (930) type
• 4.2" Outer Diameter
• Utilizes (6) -10mm X 1.54mm bolts on 3.701" bolt circle
• 2.125" seal diameter

• Made in the USA
